Where, exactly, is each antenna?

[Propellerhead]

Anybody know where to find a diagram or document showing exactly where each of the antennas are? I know they are in the rim (except the Bluetooth one). I am curious about more details because I used to build antennas in a radio hobby. I have found some nice mechanical drawings on the Apple developer site but they don't label the antennas. Thanks!



[Mtnmedic]

Well here is a pic from a tear-down that shows the antennae

Sent from my iPad using iPF.net



[Mtnmedic]

Well here is a pic from a tear-down that shows the antennae

Sent from my iPad using iPF.net

Oopps. Wrong pic. I tried to delete my post but for some reason it won't. Anyway, Just go to ifixit.com and check out their tear down of the 4S...very detailed.

Sent from my iPad using iPF.net



[Propellerhead]

Thanks. The web site you reference was interesting and I learned a lot. For example I learned that Safari can't talk to iPhoto since my Lion upgrade. But I did not see any reference to antennas there.

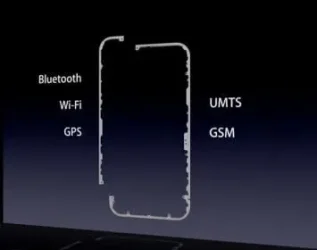

I did have the pic you posted first, from Steve Jobs' presentation, right?



[Mtnmedic]

Thanks. The web site you reference was interesting and I learned a lot. For example I learned that Safari can't talk to iPhoto since my Lion upgrade. But I did not see any reference to antennas there.

I did have the pic you posted first, from Steve Jobs' presentation, right?

Yep. I thought I had a photo of the new antennas somewhere, still looking.

Sent from my iPad using iPF.net
