Silver rings under charger port

Discussion in 'iPhone 5' started by leeballleeball, Jan 23, 2016.

  1. leeballleeball

    leeballleeball New Member

    Joined:
    Jan 10, 2016
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    1
    How important are those silver rings under the charger port

    I have changed 6 iPhone frames and never kept those silver rings. All 6 phones have battery issues now

    Are they related ??

    Thanks

  2. scifan57

    scifan57 Super Moderator Staff Member

    Joined:
    Sep 24, 2012
    Messages:
    21,684
    Likes Received:
    18,613
    Trophy Points:
    113
    Location:
    Regina, Canada
    Every part of an iPhone serves an important purpose. It's not recommended to leave out any parts when reassembling an iPhone. It's possible that leaving out those parts is the cause of your problems. Do you have any photos of the parts in question?

    • Agree Agree x 2
  3. leeballleeball

    leeballleeball New Member

    Joined:
    Jan 10, 2016
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    1

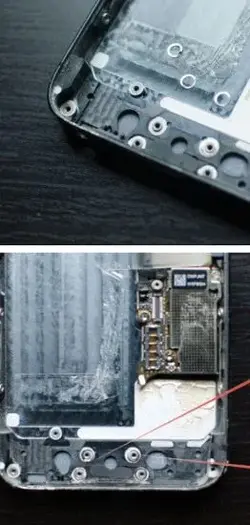

    Have attached photo

    That's the only thing I can think that is causing it

    I couldn't have damaged all 6 phones

    Thanks


    Attached Files:

  4. scifan57

    scifan57 Super Moderator Staff Member

    Joined:
    Sep 24, 2012
    Messages:
    21,684
    Likes Received:
    18,613
    Trophy Points:
    113
    Location:
    Regina, Canada
    They look like split rings. If you can get replacements, put them in position and see if that solves the problems.

  5. APX7000

    APX7000 Active Member

    Joined:
    Jan 1, 2013
    Messages:
    255
    Likes Received:
    132
    Trophy Points:
    43
    Those rings are very important for proper placement, circuit board tension on the charger connector inside the iPhone. If left out of the iPhone, it will cause the circuit board to flex slightly every time the charger is connected. After time, this constant flexing of the circuit board will cause a bad solder joint to occur and failure of the charging port.

    Every single nut, clip, screw, spacer is needed for proper long term reliability of the iPhone, or any smart phone for that matter. Leave one part out, and problems can and will happen.

    • Like Like x 2
  6. leeballleeball

    leeballleeball New Member

    Joined:
    Jan 10, 2016
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    1
    Thanks for your response

    Do you think that could cause the battery problem

    That's the only thing I can think of for all of the phones

  7. Coastiejoe

    Coastiejoe Member

    Joined:
    Jan 22, 2015
    Messages:
    83
    Likes Received:
    7
    Trophy Points:
    8
    They are needed for plug alignment. Without them, the charge cord is on an angle and does not charge properly.


    Sent from my iPhone using Tapatalk

    • Informative Informative x 1
